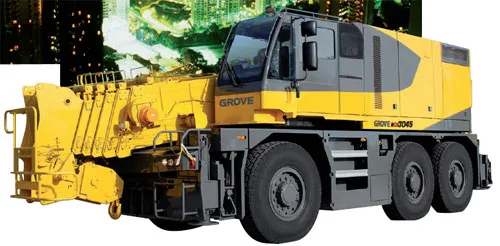

Grove GCK3045
Max. lifting capacity45 t
Max. radius34 m
Max. hook height47 m
Specifications
| Specification | Value |
|---|---|
| Lifting | |
| Max. lifting capacity | 45 t |
| Max. radius | 34 m |
| Max. hook height | 47 m |
| Boom | |
| Fly jib length | 6.3–10.2 m |
| Speeds | |
| Travel speed | 80 km/h |
| Carrier and engine | |
| Carrier chassis | HINO E 13 C мошностью 330 кВт |
| Engine | дизельный |
| Dimensions and weight | |

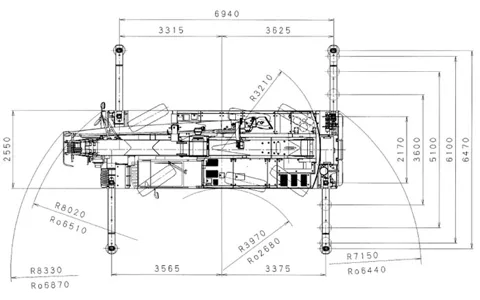

| Length | 9,070 mm |
| Width | 2,550 mm |
| Height | 3,000 mm |
| Total crane weight | 36 t |
