Grove · All-terrain cranes

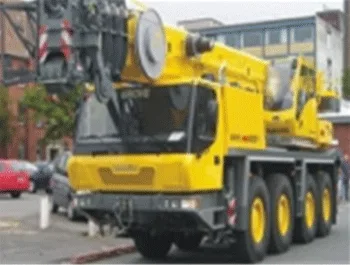

Grove GMK 4090
Max. lifting capacity90 t
Max. radius39.6 m
Max. hook height72 m
Main boom length43.2 m
Specifications
| Specification | Value |
|---|---|
| Lifting | |
| Max. lifting capacity | 90 t |
| Max. radius | 39.6 m |
| Max. hook height | 72 m |
| Boom | |
| Main boom length | 43.2 m |
| Fly jib length | 27 m |
| Speeds | |
| Travel speed | 78.5 km/h |
| Carrier and engine | |
| Axle configuration | 8×6×8 |
| Power | 320 kW |
| Dimensions and weight | |
| Length | 12,677 mm |
| Width | 2,323 mm |
| Height | 3,798 mm |
| Total crane weight | 40 t |
| Tail swing radius | 3.38 m |
