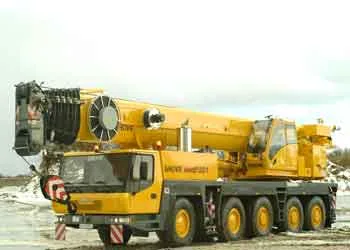

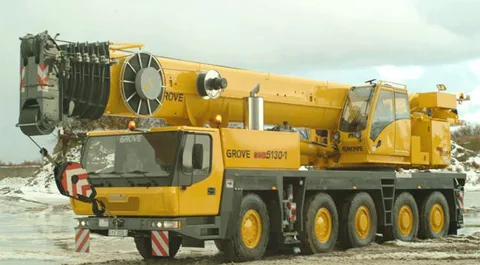

Grove GMK 5130-1
Max. lifting capacity130 t
Max. radius60 m
Max. hook height94.8 m
Main boom length60.1 m
Specifications
| Specification | Value |
|---|---|
| Lifting | |
| Max. lifting capacity | 130 t |
| Max. radius | 60 m |
| Max. hook height | 94.8 m |
| Boom | |
| Main boom length | 60.1 m |
| Fly jib length | 32 m |
| Speeds | |
| Travel speed | 80 km/h |
| Carrier and engine | |
| Axle configuration | 10×6×10 |
| Engine | Mercedes-Benz OM502A |
| Dimensions and weight | |
| Length | 14,980 mm |
| Width | 2,750 mm |
| Height | 3,910 mm |
| Total crane weight | 49.86 t |
