Grove · Truck cranes

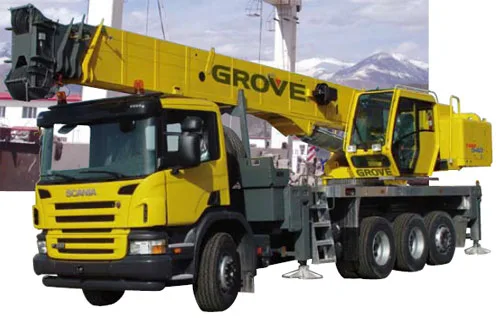

Grove TMC540

Max. lifting capacity40.8 t
Max. radius31 m
Max. hook height47 m
Main boom length9.8–31 m

Specifications

Specifications Grove TMC540
SpecificationValue
Lifting
Max. lifting capacity40.8 t
Max. radius31 m
Max. hook height47 m
Boom
Main boom length9.8–31 m
Fly jib length7.9–13.7 m
Carrier and engine
Carrier chassis6-tsilindrovyy dizelnyy Scania moshchnostyu 360 l.s.
Axle configuration8×4×4
Enginedizelnyy
Power82 kW

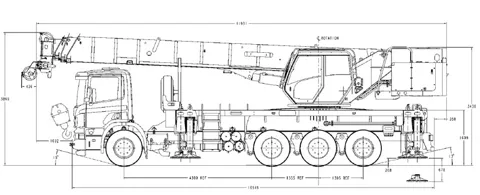

Dimensions and weight
Length11,931 mm
Width2,511 mm
Height3,869 mm
Total crane weight30.09 t

Report a data error →

About the model

A description of this model is not yet available in English.
