Grove · Truck cranes

Grove TMS500E

Max. lifting capacity36.3 t
Max. radius25.9 m
Max. hook height29 m

Specifications

Specifications Grove TMS500E
SpecificationValue
Lifting
Max. lifting capacity36.3 t
Max. radius25.9 m
Max. hook height29 m
Speeds
Travel speed105.1 km/h
Slewing speed3 rpm
Carrier and engine
Power246 kW
Dimensions and weight
Length11,256 mm
Width2,542 mm
Height3,420 mm
Total crane weight28.1 t
Tail swing radius3.66 m

Report a data error →

About the model

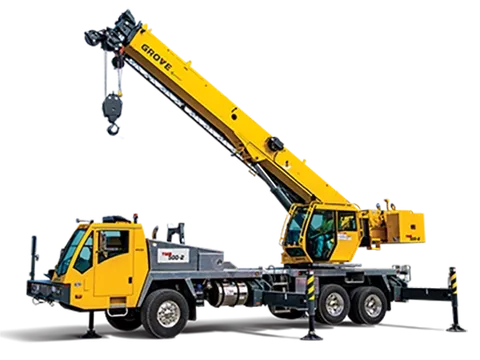

The Grove TMS500E is a truck crane by Grove with a maximum lifting capacity of 36.3 t.

Hook height 29 m, maximum radius 25.9 m.

Engine output 246 kW.
