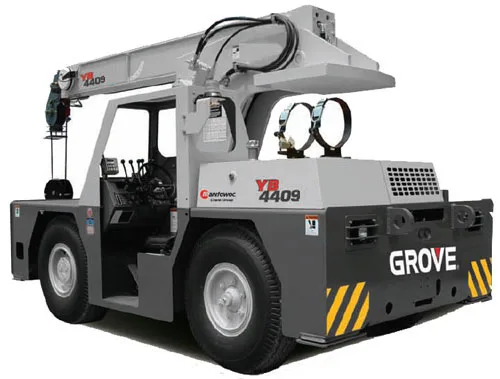

Grove YardBoss YB4409-2
Max. lifting capacity8.1 t
Max. radius10 m
Max. hook height11.6 m
Specifications
| Specification | Value |
|---|---|
| Lifting | |
| Max. lifting capacity | 8.1 t |
| Max. radius | 10 m |
| Max. hook height | 11.6 m |

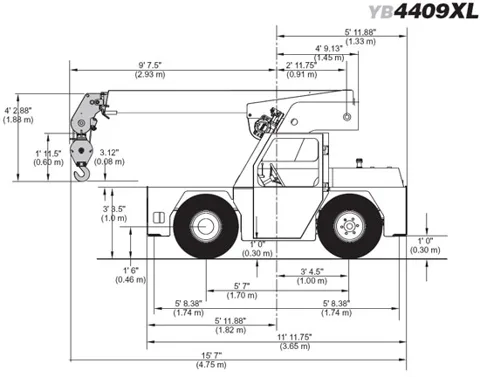

| Dimensions and weight | |
| Length | 3,650 mm |
| Width | 1,960 mm |
| Height | 2,210 mm |
| Other | |
| Rope length | 36.6 m |
| Carrier and engine | |
| Power | 73.8 kW |
| Engine | Cummins QSB 3.3L |
