KATO · Truck cranes

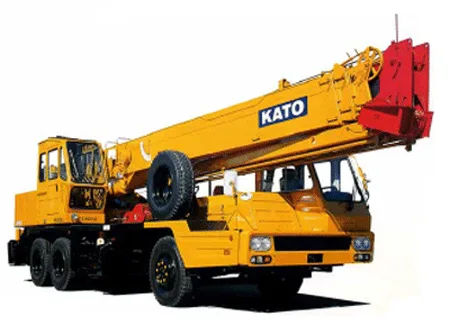

Kato NK-250E-v

Max. lifting capacity25 t
Max. radius29.3 m
Max. hook height33 m

Specifications

Specifications Kato NK-250E-v
SpecificationValue
Lifting
Max. lifting capacity25 t
Max. radius29.3 m
Max. hook height33 m
Speeds
Travel speed65 km/h
Slewing speed2.6 rpm
Carrier and engine
Power165 kW
Dimensions and weight
Length11,930 mm
Width2,500 mm
Height3,300 mm
Total crane weight24.6 t
Tail swing radius3.24 m

Report a data error →

About the model

A description of this model is not yet available in English.
