LINK-BELT · Rough-terrain cranes

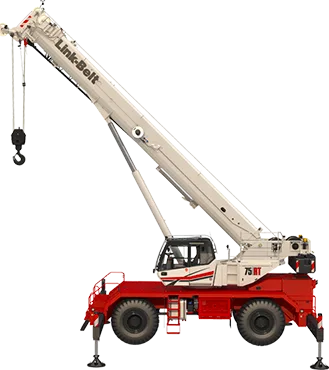

Link-Belt 75 RT

Max. lifting capacity68 t
Max. hook height63.6 m
Main boom length11.6–43.3 m

Specifications

Specifications Link-Belt 75 RT
SpecificationValue
Lifting
Max. lifting capacity68 t
Max. hook height63.6 m
Hook height with jib63.6 m
Boom
Main boom length11.6–43.3 m
Speeds
Travel speed33.5 km/h
Carrier and engine
Power201 kW
Wheelbase4,450 mm
Dimensions and weight
Length14,402 mm
Width3,200 mm
Height3,901 mm
Total crane weight42.2 t
Tail swing radius4.1 m

Report a data error →

About the model

The Link-Belt 75 RT is a rough-terrain crane by LINK-BELT with a maximum lifting capacity of 68 t.

Main boom length 11.6–43.3 m, hook height 63.6 m.

Engine output 201 kW.
