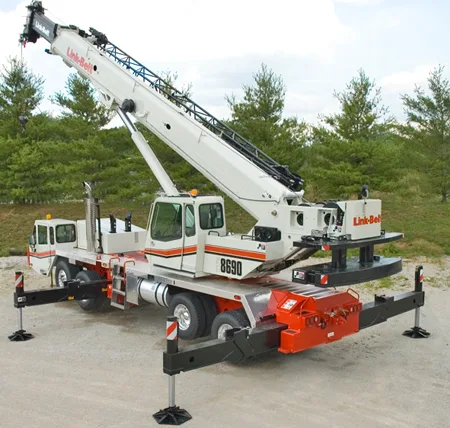

Link-Belt HTC-8690
Max. lifting capacity81.6 t
Main boom length42.7 m
Specifications
| Specification | Value |
|---|---|
| Lifting | |
| Max. lifting capacity | 81.6 t |
| Boom | |
| Main boom length | 42.7 m |
| Speeds | |
| Travel speed | 99.4 km/h |
| Carrier and engine | |
| Engine | Caterpillar C-13 12.5 L |
| Power | 445 kW |
| Dimensions and weight | |
| Length | 13,900 mm |
| Width | 2,600 mm |
| Height | 3,500 mm |
| Total crane weight | 41.3 t |
