LINK-BELT · Truck cranes

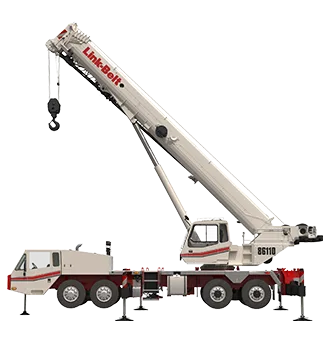

Link-Belt HTT-86110

Max. lifting capacity99.8 t
Max. hook height79.9 m
Main boom length11.7–50 m

Specifications

Specifications Link-Belt HTT-86110
SpecificationValue
Lifting
Max. lifting capacity99.8 t
Max. hook height79.9 m
Hook height with jib79.7 m
Boom
Main boom length11.7–50 m
Carrier and engine
Power358 kW
Dimensions and weight
Length13,750 mm
Width2,777 mm
Height3,505 mm
Tail swing radius4.27 m

Report a data error →

About the model

The Link-Belt HTT-86110 is a truck crane by LINK-BELT with a maximum lifting capacity of 99.8 t.

Main boom length 11.7–50 m, hook height 79.9 m.

Engine output 358 kW.
