LINK-BELT · Crawler cranes

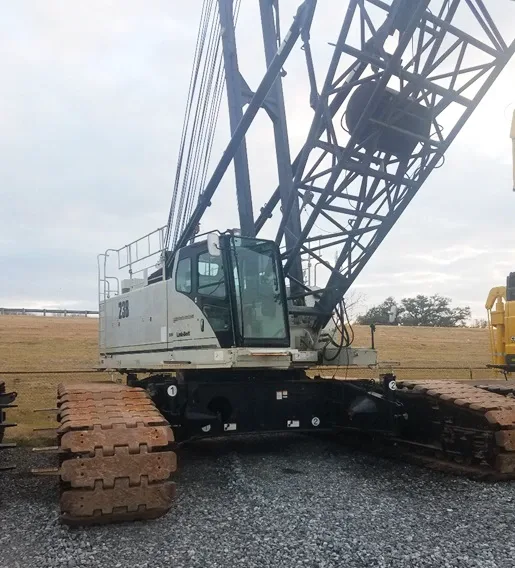

Link-Belt LS238HSL

Max. lifting capacity136.1 t
Main boom length79.2 m

Specifications

Specifications Link-Belt LS238HSL
SpecificationValue
Lifting
Max. lifting capacity136.1 t
Boom
Main boom length79.2 m
Fly jib length24.38–48.77 m
Speeds
Slewing speed1.7 rpm
Carrier and engine
EngineCummins QSB6.7 Tier 4 Final
Power201 kW
Dimensions and weight
Total crane weight119.15 t
Other
Rope diameter26 mm

Report a data error →

About the model

The Link-Belt LS238HSL is a crawler crane by LINK-BELT with a maximum lifting capacity of 136.1 t.

Main boom length 79.2 m.

Engine output 201 kW.
