LINK-BELT · Crawler cranes

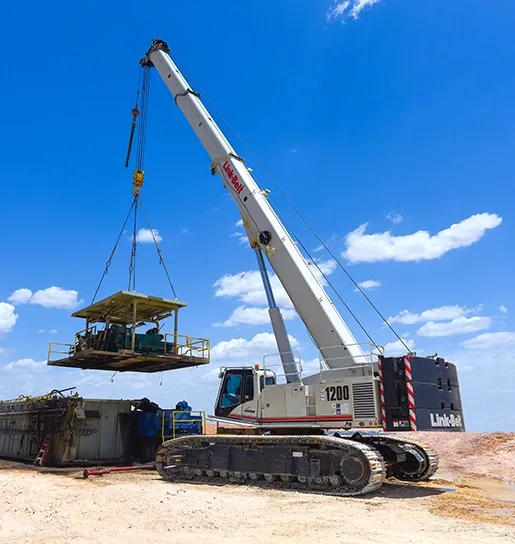

Link-Belt TCC-1200
Max. lifting capacity108.9 t
Max. hook height64.3 m
Main boom length45.7 m
Specifications
| Specification | Value |
|---|---|
| Lifting | |
| Max. lifting capacity | 108.9 t |
| Max. hook height | 64.3 m |
| Boom | |
| Main boom length | 45.7 m |
| Speeds | |
| Travel speed | 3.2 km/h |
| Carrier and engine | |
| Power | 239 kW |
| Dimensions and weight | |
| Length | 15,362 mm |
| Height | 3,658 mm |
| Total crane weight | 8.6 t |
| Tail swing radius | 7.44 m |
About the model
The Link-Belt TCC-1200 is a crawler crane by LINK-BELT with a maximum lifting capacity of 108.9 t.
Main boom length 45.7 m, hook height 64.3 m.
Engine output 239 kW.
