LINK-BELT · Crawler cranes

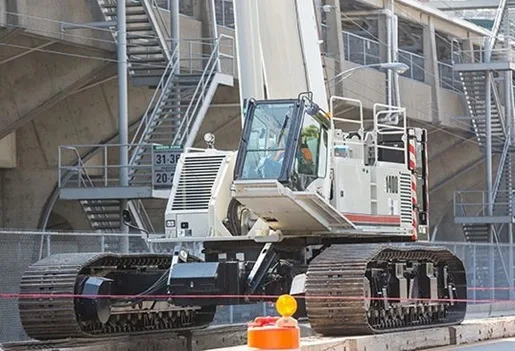

Link-Belt TCC-1400
Max. lifting capacity127 t
Max. hook height78.5 m
Main boom length59.4 m
Specifications
| Specification | Value |
|---|---|
| Lifting | |
| Max. lifting capacity | 127 t |
| Max. hook height | 78.5 m |
| Boom | |
| Main boom length | 59.4 m |
| Speeds | |
| Travel speed | 3.2 km/h |
| Carrier and engine | |
| Power | 239 kW |
| Dimensions and weight | |
| Length | 16,124 mm |
| Height | 3,627 mm |
| Total crane weight | 8.6 t |
| Tail swing radius | 7.44 m |
About the model
The Link-Belt TCC-1400 is a crawler crane by LINK-BELT with a maximum lifting capacity of 127 t.
Main boom length 59.4 m, hook height 78.5 m.
Engine output 239 kW.
