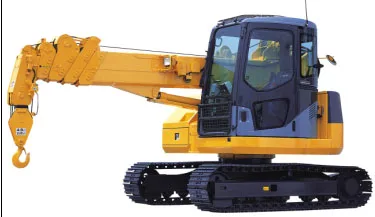

Maeda LC785
Max. lifting capacity4.9 t
Max. radius15.63 m
Max. hook height16.5 m
Specifications
| Specification | Value |
|---|---|
| Lifting | |
| Max. lifting capacity | 4.9 t |
| Max. radius | 15.63 m |
| Max. hook height | 16.5 m |
| Speeds | |
| Hoisting speed | 27 m/min |
| Carrier and engine | |
| Power | 40.5 kW |
| Dimensions and weight | |
| Length | 5,000 mm |
| Width | 2,350 mm |
| Height | 2,680 mm |
