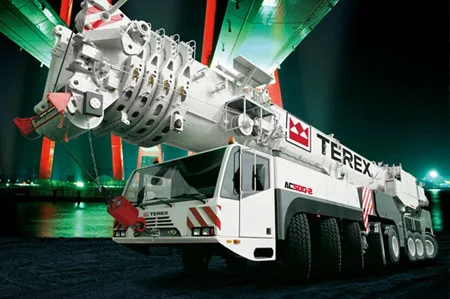

Terex-Demag AC 500-2
Max. lifting capacity500 t
Max. radius145.8 m
Specifications
| Specification | Value |
|---|---|
| Lifting | |
| Max. lifting capacity | 500 t |
| Max. radius | 145.8 m |
| Speeds | |
| Travel speed | 64 km/h |
| Carrier and engine | |
| Axle configuration | 16×8×14 |
| Engine | DaimlerChrysler OM 502 LA |
| Dimensions and weight | |
| Length | 19,290 mm |
| Width | 3,000 mm |
| Height | 4,000 mm |
| Total crane weight | 96 t |
