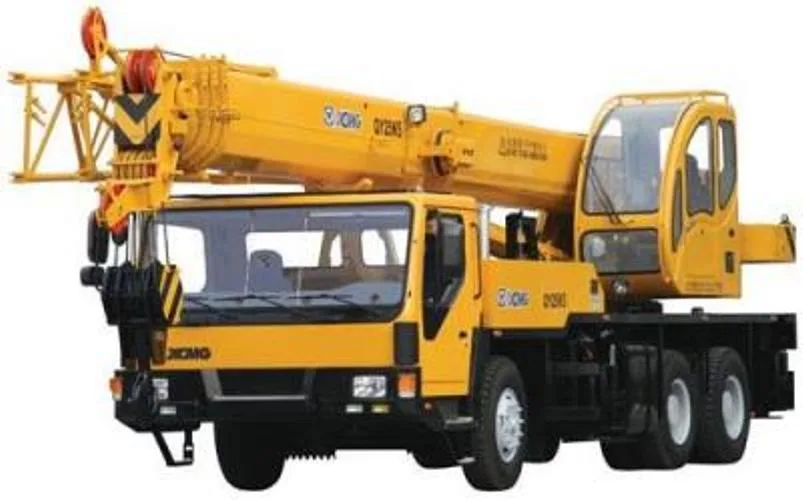

XCMG QY25K5
Max. lifting capacity25 t
Max. hook height38.7 m
Specifications
| Specification | Value |
|---|---|
| Lifting | |
| Max. lifting capacity | 25 t |
| Load moment | 96 t·m |
| Max. hook height | 38.7 m |
| Hook height with jib | 47.6 m |
| Speeds | |
| Slewing speed | 2.5 rpm |
| Travel speed | 75 km/h |
| Carrier and engine | |
| Carrier chassis | XCMG |
| Engine | Shanghai 6C 215-2 |
| Power | 206 kW |
| Dimensions and weight | |
| Length | 12,000 mm |
| Width | 2,500 mm |
| Height | 3,380 mm |
| Total crane weight | 31 t |
