XCMG · All-terrain cranes

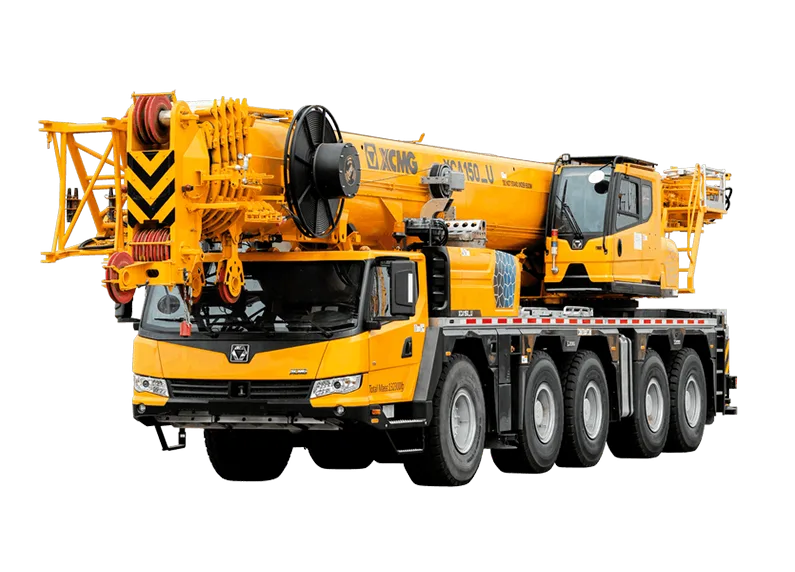

XCMG XCA150_U

Max. lifting capacity136.1 t
Main boom length70.2 m

Specifications

Specifications XCMG XCA150_U
SpecificationValue
Lifting
Max. lifting capacity136.1 t
Load moment597.1 t·m
Hook height with jib92.5 m
Boom
Main boom length70.2 m
Speeds
Travel speed80 km/h
Carrier and engine
Axle configuration10×8×10
EngineOM471LA
Power360 kW
Dimensions and weight
Length15,606 mm
Width2,987 mm
Height3,993 mm
Total crane weight60 t

Report a data error →

About the model

The XCMG XCA150_U is an all-terrain crane by XCMG with a maximum lifting capacity of 136.1 t.

Main boom length 70.2 m.

10×8×10 drive, engine output 360 kW.
