Specifications
| Specification | Value |
|---|---|
| Lifting | |
| Max. lifting capacity | 25 t |
| Load moment | 98.4 t·m |
| Max. hook height | 48.1 m |
| Boom | |
| Main boom length | 40.5 m |
| Carrier and engine | |
| Power | 192 kW |
| Engine | SC7H260Q3 |
| Axle configuration | 6×4×2 |
| Speeds | |
| Travel speed | 85 km/h |
| Dimensions and weight | |
| Total crane weight | 30.6 t |
| Length | 12,438 mm |
| Width | 2,550 mm |
| Height | 3,415 mm |
About the model

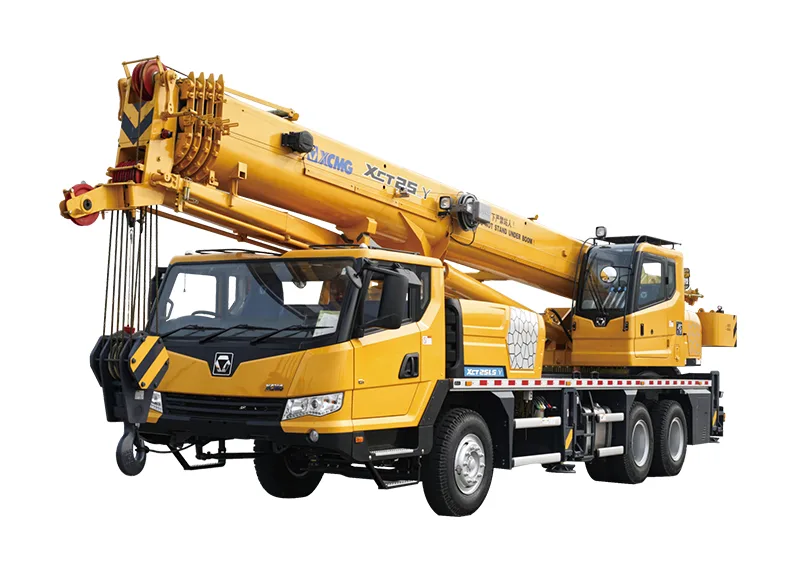

The XCMG XCT25L5_Y is a truck crane by XCMG with a maximum lifting capacity of 25 t.
Main boom length 40.5 m, hook height 48.1 m.
6×4×2 drive, engine output 192 kW.
