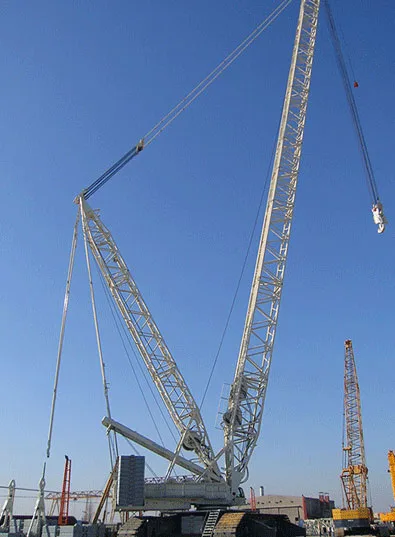

Zoomlion QUY1000
Max. lifting capacity1,000 t
Max. radius150 m
Max. hook height195 m
Main boom length150 m
Specifications
| Specification | Value |
|---|---|
| Lifting | |
| Max. lifting capacity | 1,000 t |
| Max. radius | 150 m |
| Max. hook height | 195 m |
| Boom | |
| Main boom length | 150 m |
| Speeds | |
| Slewing speed | 1 rpm |
| Travel speed | 1 km/h |
| Dimensions and weight | |
| Length | 5,160 mm |
| Width | 3,540 mm |
| Height | 3,200 mm |
| Tail swing radius | 14 m |
