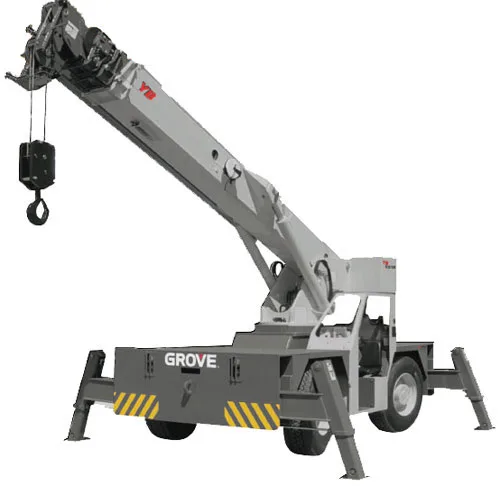

Grove YardBoss YB5515
Max. lifting capacity13.6 t
Max. radius17 m
Max. hook height20.1 m
Specifications
| Specification | Value |
|---|---|
| Lifting | |
| Max. lifting capacity | 13.6 t |
| Max. radius | 17 m |
| Max. hook height | 20.1 m |

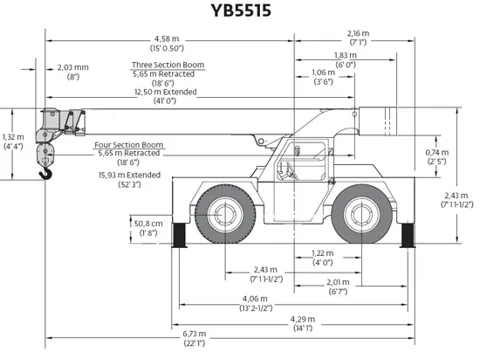

| Dimensions and weight | |
| Length | 6,730 mm |
| Width | 2,440 mm |
| Height | 2,430 mm |
| Other | |
| Rope length | 73–88.4 m |
| Carrier and engine | |
| Power | 63 kW |
| Engine | Cummins QSB 3.3L, Tier III |
