Shuttlelift · Compact cranes

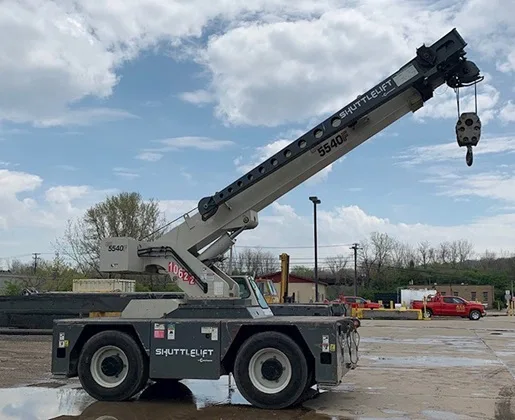

Shuttlelift 5540F
Max. lifting capacity13.6 t
Max. radius11.4 m
Max. hook height12.5 m
Main boom length12.5 m
Specifications
| Specification | Value |
|---|---|
| Lifting | |
| Max. lifting capacity | 13.6 t |
| Max. radius | 11.4 m |
| Max. hook height | 12.5 m |
| Boom | |
| Main boom length | 12.5 m |
| Speeds | |
| Travel speed | 23.3 km/h |
| Slewing speed | 2.1 rpm |
| Carrier and engine | |
| Power | 63 kW |
| Dimensions and weight | |
| Length | 6,733 mm |
| Width | 2,411 mm |
| Height | 2,432 mm |
| Total crane weight | 12 t |
| Tail swing radius | 1.83 m |
About the model
The Shuttlelift 5540F is a compact crane by Shuttlelift with a maximum lifting capacity of 13.6 t.
Main boom length 12.5 m, hook height 12.5 m, maximum radius 11.4 m.
Engine output 63 kW.
