Kobelco · Rough-terrain cranes

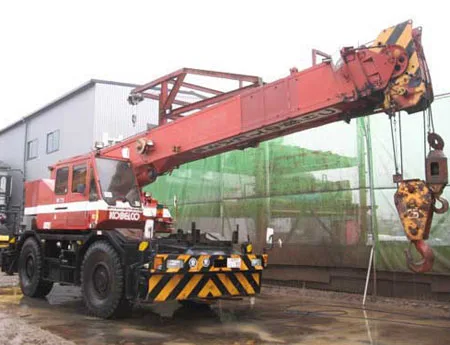

Kobelco RK250

Max. lifting capacity25 t
Max. radius30.6 m
Max. hook height30.6 m

Specifications

Specifications Kobelco RK250
SpecificationValue
Lifting
Max. lifting capacity25 t
Max. radius30.6 m
Max. hook height30.6 m
Speeds
Travel speed50 km/h
Slewing speed3.06 rpm
Carrier and engine
EngineMMC 6D16
Power158 kW
Wheelbase3,700 mm
Dimensions and weight
Length11,012 mm
Width2,490 mm
Height3,450 mm
Total crane weight26.5 t
Tail swing radius3.03 m

Report a data error →

About the model

A description of this model is not yet available in English.
