Sany · All-terrain cranes

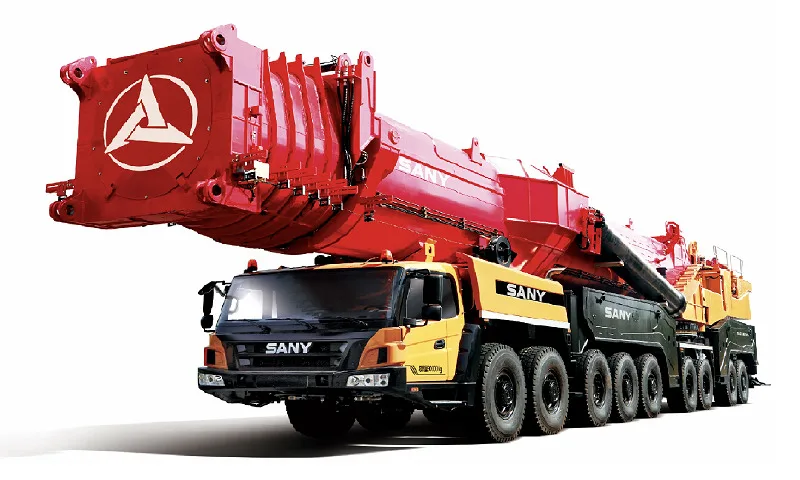

SANY SAC16000S
Max. lifting capacity1,600 t
Max. hook height146 m
Main boom length104.1 m
Specifications
| Specification | Value |
|---|---|
| Lifting | |
| Max. lifting capacity | 1,600 t |
| Load moment | 3,302.8 t·m |
| Max. hook height | 146 m |
| Hook height with jib | 146 m |
| Boom | |
| Main boom length | 104.1 m |
| Fly jib length | 66 m |
| Speeds | |
| Travel speed | 75 km/h |
| Carrier and engine | |
| Axle configuration | 18 x 8 x 18 |
| Engine | BENZ OM502LA Euro IV |
| Power | 480 kW |
| Dimensions and weight | |
| Length | 20,879 mm |
| Width | 3,000 mm |
| Height | 4,000 mm |
About the model
The SANY SAC16000S is an all-terrain crane by Sany with a maximum lifting capacity of 1,600 t.
Main boom length 104.1 m, hook height 146 m.
18 x 8 x 18 drive, engine output 480 kW.
