Specifications
| Specification | Value |
|---|---|
| Lifting | |
| Max. lifting capacity | 160 t |
| Load moment | 524.6 t·m |
| Boom | |
| Main boom length | 74.8 m |
| Speeds | |
| Travel speed | 80 km/h |
| Carrier and engine | |
| Engine | WP13G530E310 WP7G270E301 |
| Power | 390 kW |
| Dimensions and weight | |
| Length | 16,000 mm |
| Width | 2,800 mm |
| Height | 4,000 mm |
| Total crane weight | 60 t |
About the model

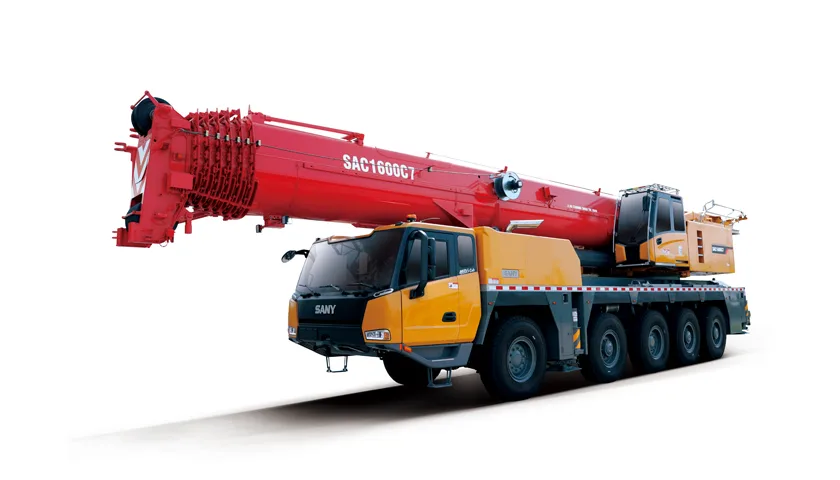

The SANY SAC1600C7 is an all-terrain crane by Sany with a maximum lifting capacity of 160 t.
Main boom length 74.8 m.
Engine output 390 kW.
