Sany · Truck cranes

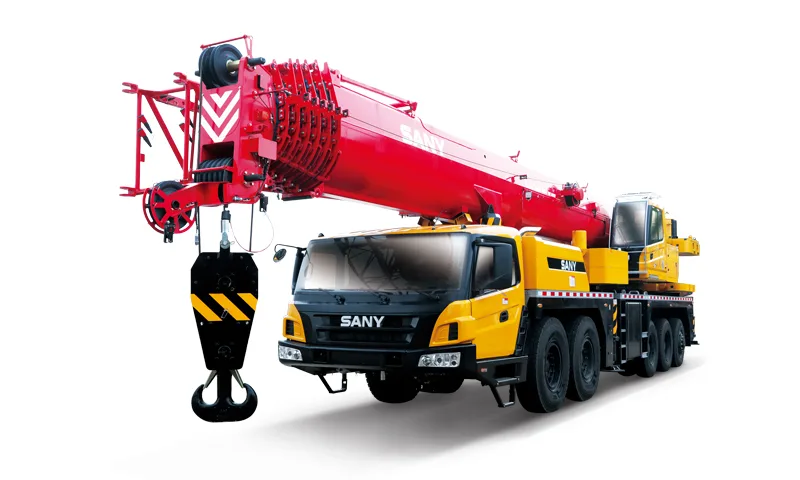

SANY STC1100T7

Max. lifting capacity110 t
Max. hook height100.2 m
Main boom length73.2 m

Specifications

Specifications SANY STC1100T7
SpecificationValue
Lifting
Max. lifting capacity110 t
Load moment410.7 t·m
Max. hook height100.2 m
Hook height with jib100.2 m
Boom
Main boom length73.2 m
Fly jib length27 m
Speeds
Travel speed90 km/h
Carrier and engine
Axle configuration10 x 6 x 6
EngineWP12.430E50 (China Ⅴ )
Dimensions and weight
Length16,040 mm
Width3,000 mm
Height3,995 mm
Total crane weight54.6 t

Report a data error →

About the model

The SANY STC1100T7 is a truck crane by Sany with a maximum lifting capacity of 110 t.

Main boom length 73.2 m, hook height 100.2 m.

10 x 6 x 6 drive.
