Sany · Truck cranes

SANY STC160

Max. lifting capacity16 t
Max. hook height40.5 m
Main boom length32 m

Specifications

Specifications SANY STC160
SpecificationValue
Lifting
Max. lifting capacity16 t
Load moment74.4 t·m
Max. hook height40.5 m
Hook height with jib40.5 m
Boom
Main boom length32 m
Fly jib length8 m
Speeds
Travel speed80 km/h
Carrier and engine
Axle configuration6x4x2
Power192 kW
Dimensions and weight
Length12,000 mm
Width2,500 mm
Height3,480 mm
Total crane weight24 t

Report a data error →

About the model

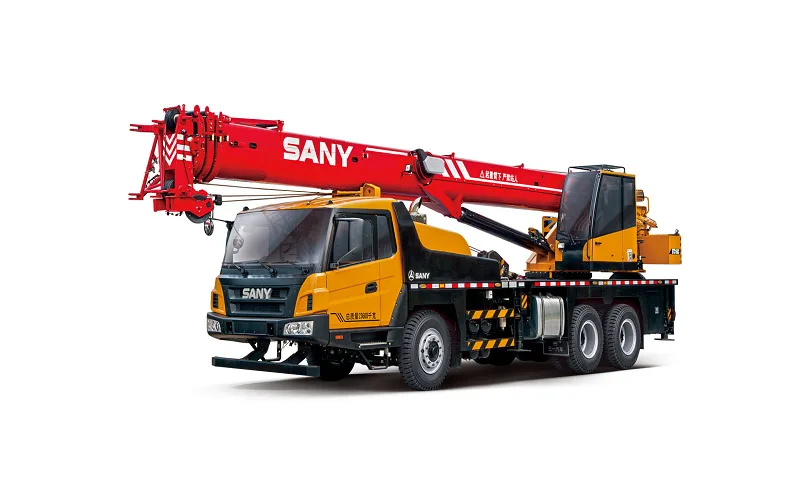

The SANY STC160 is a truck crane by Sany with a maximum lifting capacity of 16 t.

Main boom length 32 m, hook height 40.5 m.

6x4x2 drive, engine output 192 kW.
