Sany · Truck cranes

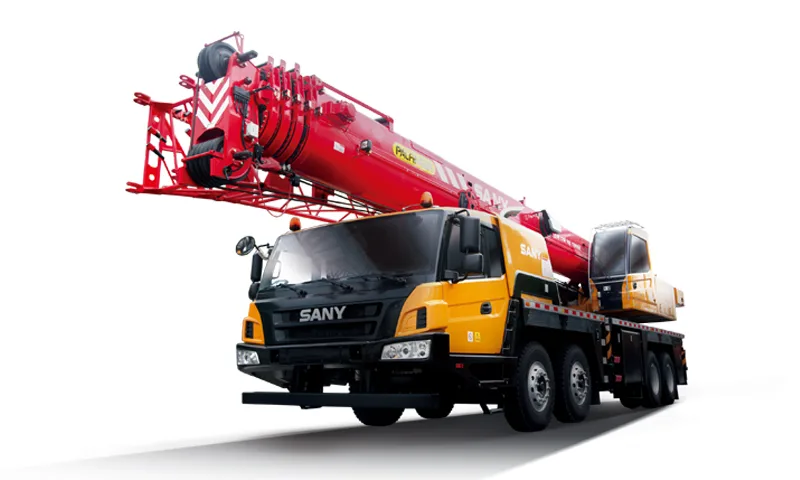

SANY STC500

Max. lifting capacity50 t
Max. hook height59.2 m
Main boom length43 m

Specifications

Specifications SANY STC500
SpecificationValue
Lifting
Max. lifting capacity50 t
Load moment180.8 t·m
Max. hook height59.2 m
Hook height with jib59.2 m
Boom
Main boom length43 m
Fly jib length16 m
Speeds
Travel speed85 km/h
Carrier and engine
Axle configuration8 x 4
Power250 kW
Dimensions and weight
Length13,750 mm
Width2,750 mm
Height3,800 mm

Report a data error →

About the model

The SANY STC500 is a truck crane by Sany with a maximum lifting capacity of 50 t.

Main boom length 43 m, hook height 59.2 m.

8 x 4 drive, engine output 250 kW.
