TadanoAll-terrain cranes
Tadano AC 4.070-2
Max. lifting capacity70 t
Max. radius42 m
Max. hook height69 m
Main boom length10.4–50 m
Specifications
| Specification | Value |
|---|---|
| Lifting | |
| Max. lifting capacity | 70 t |
| Max. hook height | 69 m |
| Max. radius | 42 m |
| Boom | |
| Main boom length | 10.4–50 m |
| Dimensions and weight | |
| Length | 11,690 mm |
| Width | 2,550 mm |
| Height | 3,790 mm |
| Carrier and engine | |
| Engine | Mercedes-Benz |
| Axle configuration | 8×4×8 |
About the model

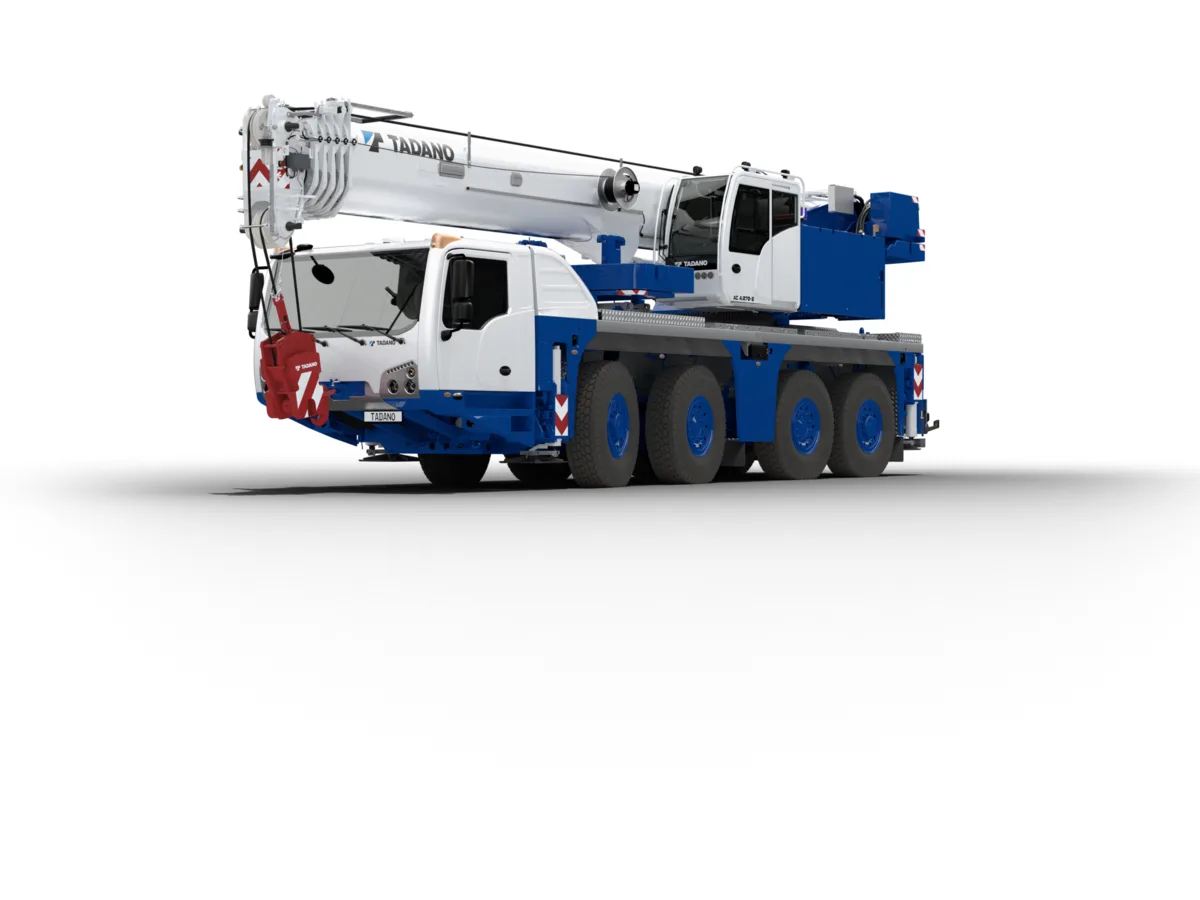

The Tadano AC 4.070-2 is an all-terrain crane by Tadano with a maximum lifting capacity of 70 t.
Main boom length 10.4–50 m, hook height 69 m, maximum radius 42 m.
8×4×8 drive.
