Tadano · All-terrain cranes

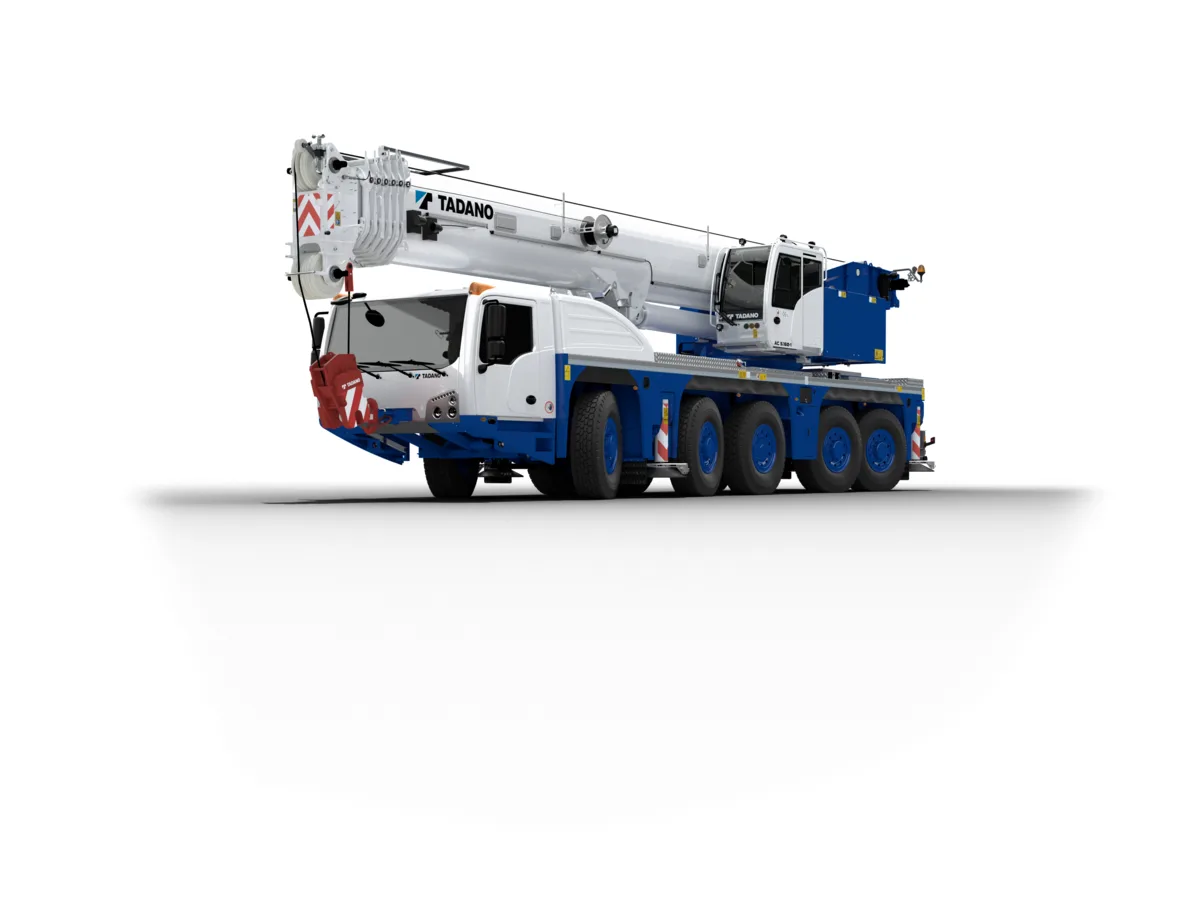

Tadano AC 5.160-1

Max. lifting capacity160 t
Max. radius66 m
Max. hook height97 m
Main boom length12.4–68 m

Specifications

Specifications Tadano AC 5.160-1
SpecificationValue
Lifting
Max. lifting capacity160 t
Max. radius66 m
Max. hook height97 m
Hook height with jib97.6 m
Boom
Main boom length12.4–68 m
Fly jib length33 m
Carrier and engine
Axle configuration10×6×10
EngineScania
Dimensions and weight
Length14,510 mm
Width2,750 mm
Height3,930 mm

Report a data error →

About the model

The Tadano AC 5.160-1 is an all-terrain crane by Tadano with a maximum lifting capacity of 160 t.

Main boom length 12.4–68 m, hook height 97 m, maximum radius 66 m.

10×6×10 drive.
