Tadano · All-terrain cranes

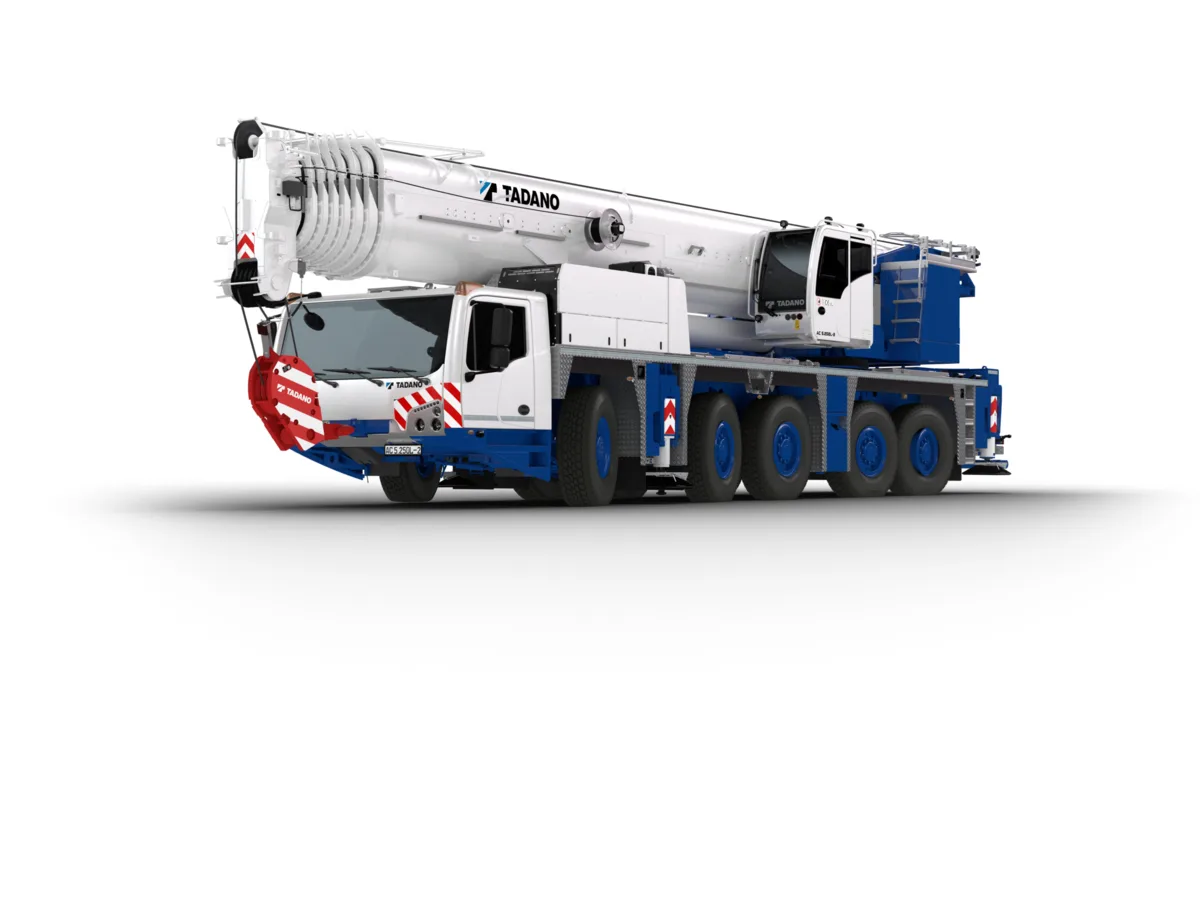

Tadano AC 5.250L-2

Max. lifting capacity250 t
Max. radius88 m
Max. hook height113 m
Main boom length13.5–79 m

Specifications

Specifications Tadano AC 5.250L-2
SpecificationValue
Lifting
Max. lifting capacity250 t
Max. radius88 m
Max. hook height113 m
Hook height with jib112.3 m
Boom
Main boom length13.5–79 m
Fly jib length30 m
Carrier and engine
Axle configuration10×6×10
EngineMercedes-Benz
Dimensions and weight
Length15,590 mm
Width3,000 mm
Height3,990 mm

Report a data error →

About the model

The Tadano AC 5.250L-2 is an all-terrain crane by Tadano with a maximum lifting capacity of 250 t.

Main boom length 13.5–79 m, hook height 113 m, maximum radius 88 m.

10×6×10 drive.
