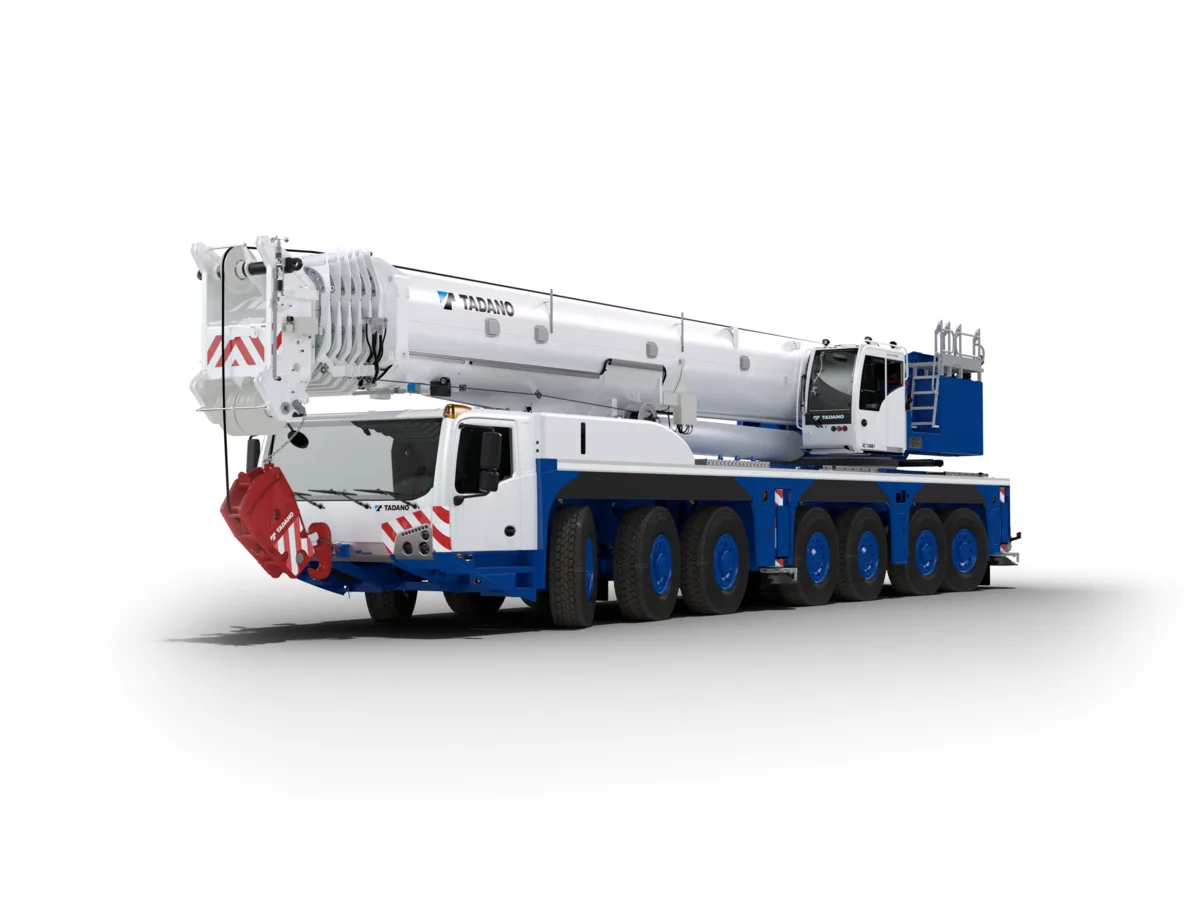

Tadano AC 7.450-1

Max. lifting capacity450 t
Max. radius98 m
Max. hook height128 m
Main boom length14.8–79.9 m

Specifications

Specifications Tadano AC 7.450-1
SpecificationValue
Lifting
Max. lifting capacity450 t
Max. radius98 m
Max. hook height128 m
Hook height with jib127.7 m
Boom
Main boom length14.8–79.9 m
Fly jib length81 m
Carrier and engine
Axle configuration14×8×14
EngineMercedes-Benz
Dimensions and weight
Length17,620 mm
Width3,000 mm
Height3,940 mm

Report a data error →

About the model

The Tadano AC 7.450-1 is an all-terrain crane by Tadano with a maximum lifting capacity of 450 t.

Main boom length 14.8–79.9 m, hook height 128 m, maximum radius 98 m.

14×8×14 drive.
