Specifications
| Specification | Value |
|---|---|
| Lifting | |
| Max. lifting capacity | 75 t |
| Load moment | 75 t·m |
| Max. radius | 48 m |
| Boom | |
| Main boom length | 12–47 m |
| Dimensions and weight | |
| Total crane weight | 45.7 t |
| Length | 14,180 mm |
| Width | 2,800 mm |
| Height | 3,740 mm |
| Carrier and engine | |
| Engine | Daimler OM457LA |
About the model

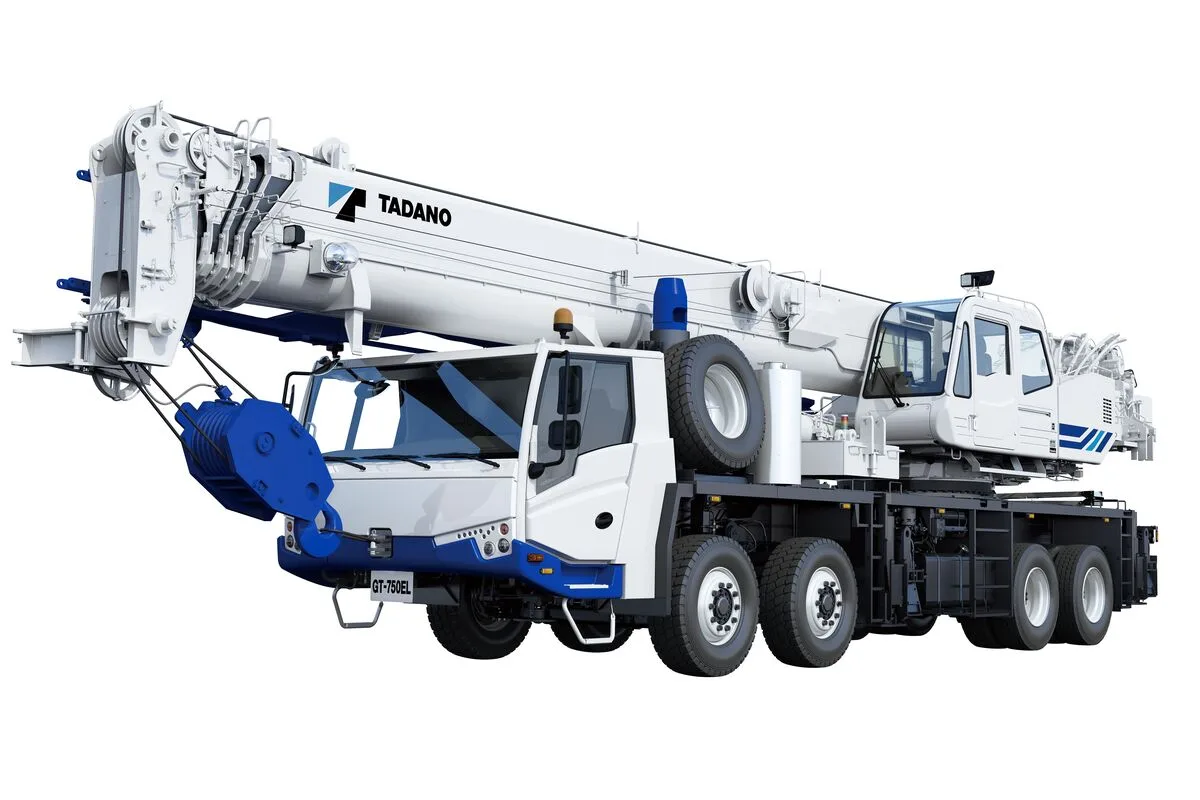

The Tadano GT-750EL-3 is a truck crane by Tadano with a maximum lifting capacity of 75 t.
Main boom length 12–47 m, maximum radius 48 m.
