Tadano · Crawler cranes

Tadano GTC-1300

Max. lifting capacity130 t
Max. radius60 m
Max. hook height79 m
Main boom length12.8–47.2 m

Specifications

Specifications Tadano GTC-1300
SpecificationValue
Lifting
Max. lifting capacity130 t
Max. radius60 m
Max. hook height79 m
Hook height with jib78.9 m
Boom
Main boom length12.8–47.2 m
Fly jib length18 m
Carrier and engine
EngineCummins QSL9
Dimensions and weight
Length15,770 mm
Width3,660 mm
Height4,520 mm
Total crane weight117.9 t

Report a data error →

About the model

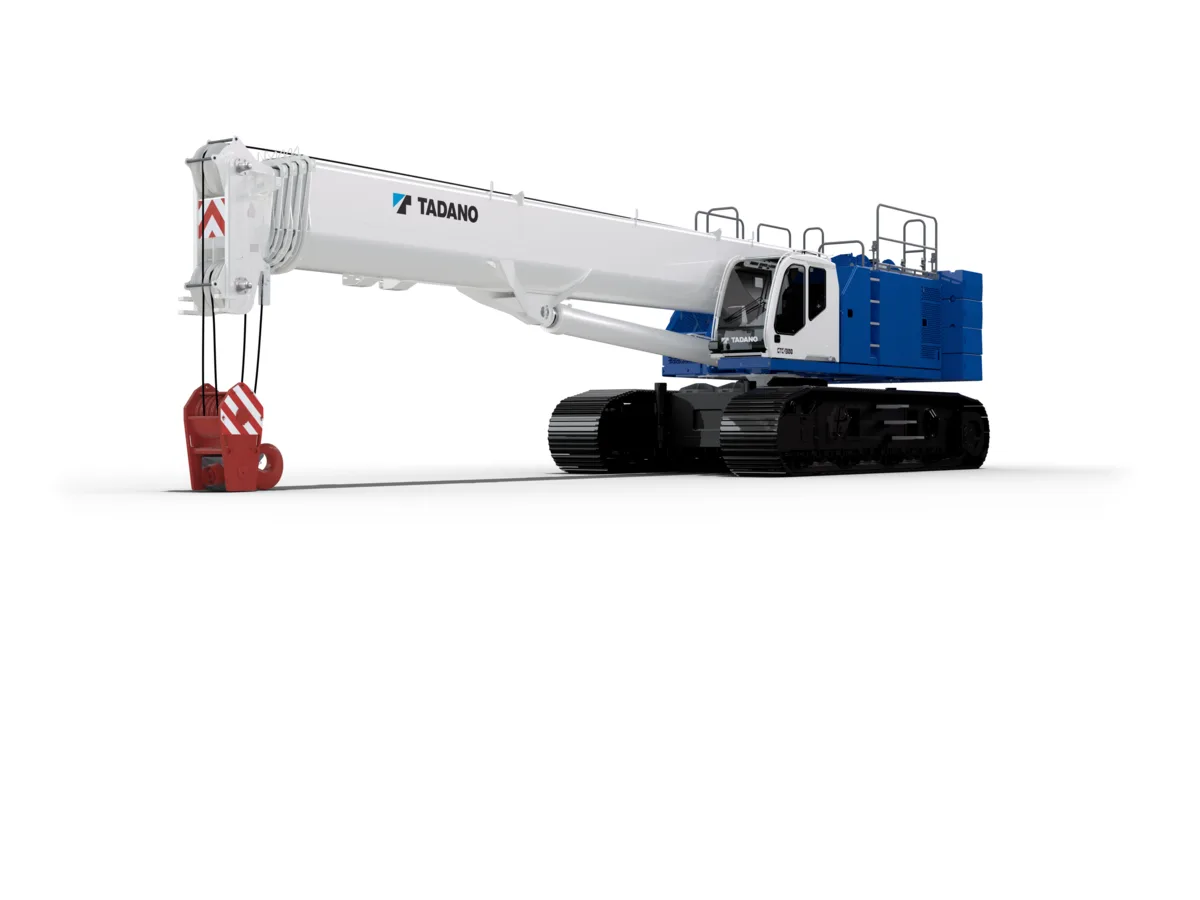

The Tadano GTC-1300 is a crawler crane by Tadano with a maximum lifting capacity of 130 t.

Main boom length 12.8–47.2 m, hook height 79 m, maximum radius 60 m.
