Tadano · Crawler cranes

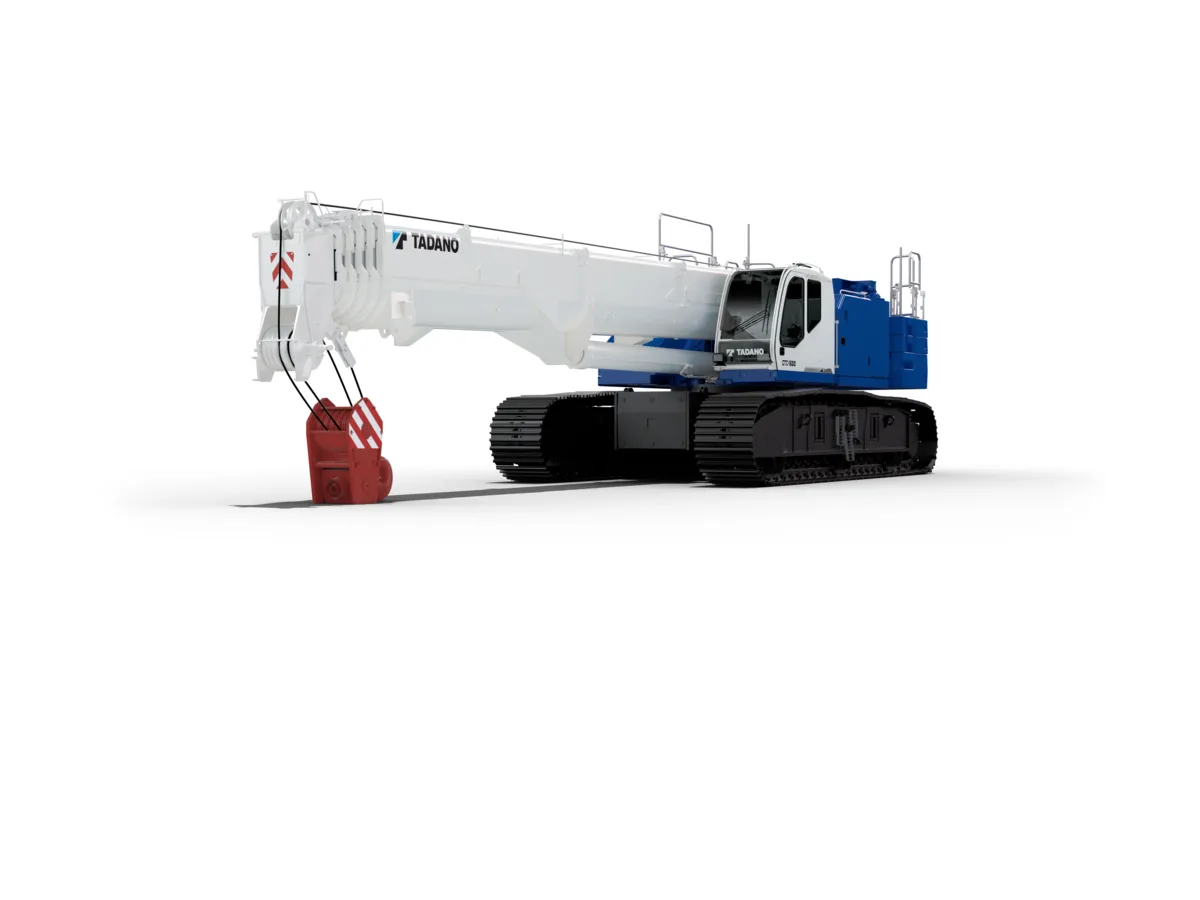

Tadano GTC-1600

Max. lifting capacity145 t
Max. radius67 m
Max. hook height92 m
Main boom length13.1–61 m

Specifications

Specifications Tadano GTC-1600
SpecificationValue
Lifting
Max. lifting capacity145 t
Max. radius67 m
Max. hook height92 m
Hook height with jib92 m
Boom
Main boom length13.1–61 m
Fly jib length32 m
Carrier and engine
EngineCummins B6.7
Dimensions and weight
Length15,500 mm
Width3,300 mm
Height3,450 mm
Total crane weight114.3 t

Report a data error →

About the model

The Tadano GTC-1600 is a crawler crane by Tadano with a maximum lifting capacity of 145 t.

Main boom length 13.1–61 m, hook height 92 m, maximum radius 67 m.
