Tadano · Crawler cranes

Tadano GTC-600-2

Max. lifting capacity60 t
Max. radius44 m
Max. hook height49.9 m
Main boom length11–34.7 m

Specifications

Specifications Tadano GTC-600-2
SpecificationValue
Lifting
Max. lifting capacity60 t
Max. radius44 m
Max. hook height49.9 m
Hook height with jib49.9 m
Boom
Main boom length11–34.7 m
Fly jib length15.2 m
Carrier and engine
EngineCummins QSB6.7
Dimensions and weight
Length13,110 mm
Width3,480 mm
Height3,680 mm
Total crane weight47.1 t

Report a data error →

About the model

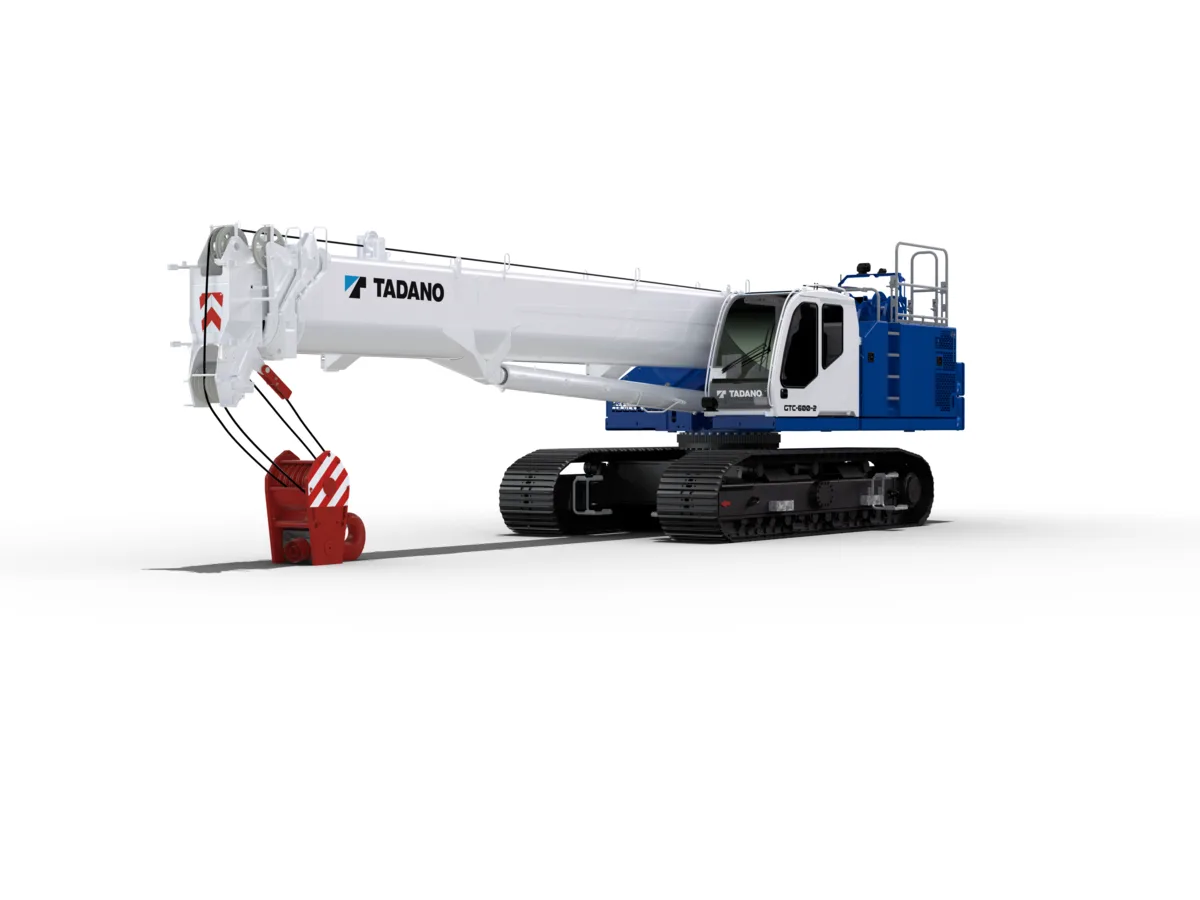

The Tadano GTC-600-2 is a crawler crane by Tadano with a maximum lifting capacity of 60 t.

Main boom length 11–34.7 m, hook height 49.9 m, maximum radius 44 m.
