Tadano · Crawler cranes

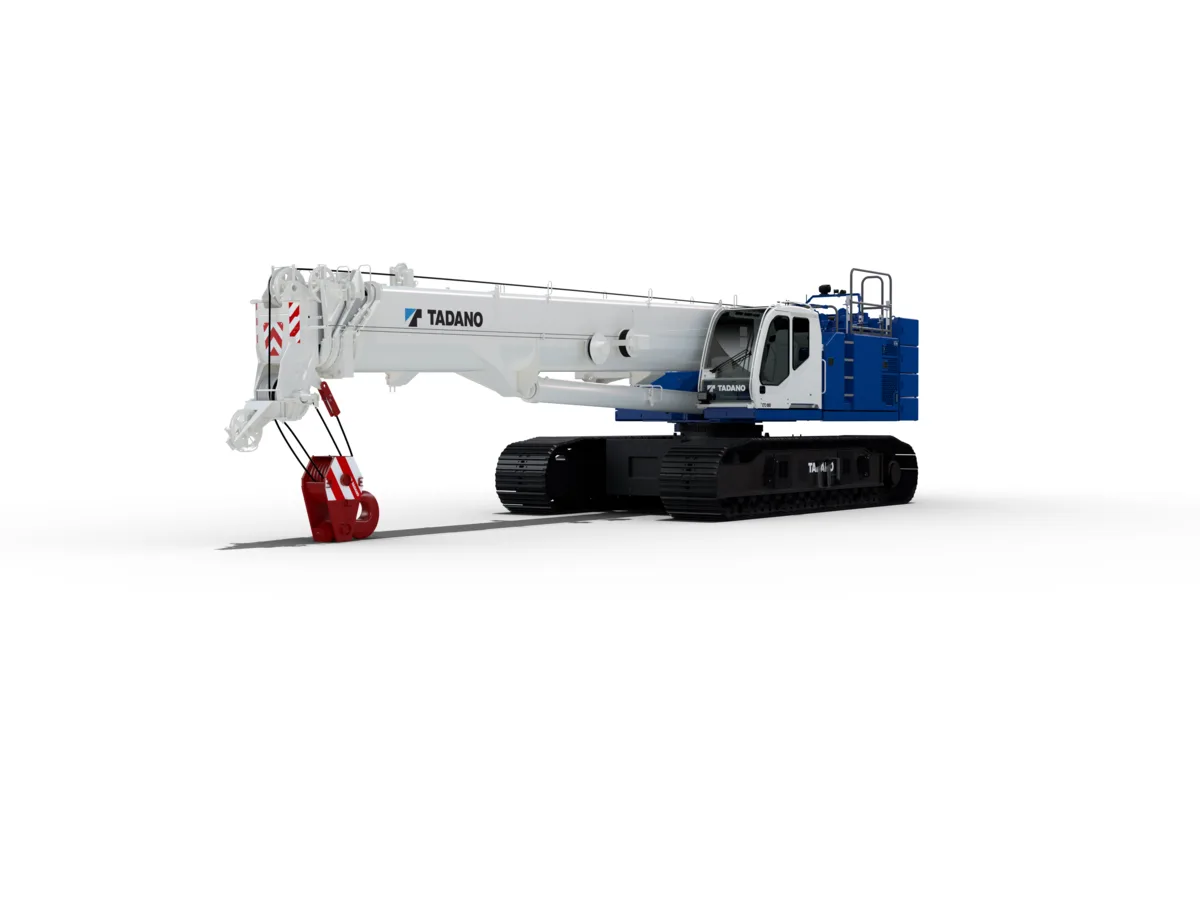

Tadano GTC-980

Max. lifting capacity80 t
Max. radius55 m
Max. hook height60.4 m
Main boom length11.5–43 m

Specifications

Specifications Tadano GTC-980
SpecificationValue
Lifting
Max. lifting capacity80 t
Max. radius55 m
Max. hook height60.4 m
Hook height with jib60.4 m
Boom
Main boom length11.5–43 m
Fly jib length17.7 m
Carrier and engine
EngineCummins B6.7
Dimensions and weight
Length14,000 mm
Width3,580 mm
Height3,990 mm
Total crane weight81.7 t

Report a data error →

About the model

The Tadano GTC-980 is a crawler crane by Tadano with a maximum lifting capacity of 80 t.

Main boom length 11.5–43 m, hook height 60.4 m, maximum radius 55 m.
