Specifications
| Specification | Value |
|---|---|
| Lifting | |
| Load moment | 10.2 t·m |
| Max. radius | 12.8 m |
| Max. hook height | 15.54 m |
| Dimensions and weight | |
| Length | 2,265 mm |
| Width | 790 mm |
| Height | 2,170 mm |
| Other | |
| Slewing angle | 400 ° |
About the model

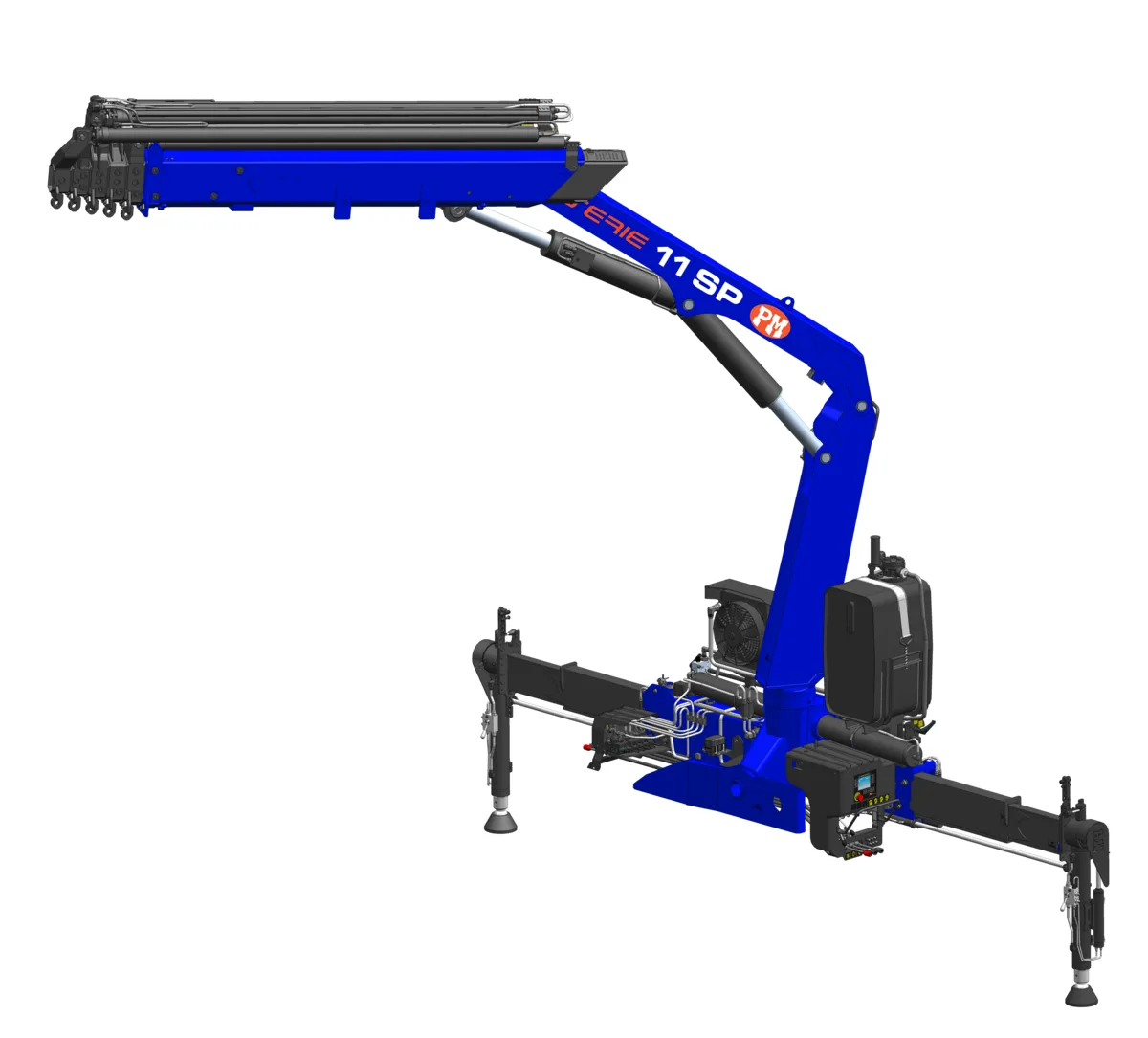

The Tadano PM 11 SP C is a loader crane by Tadano.
Hook height 15.54 m, maximum radius 12.8 m.
