Specifications
| Specification | Value |
|---|---|
| Lifting | |
| Load moment | 62.5 t·m |
| Max. radius | 33.8 m |
| Max. hook height | 36.88 m |
| Dimensions and weight | |
| Length | 2,550 mm |
| Width | 1,695 mm |
| Height | 2,775 mm |
About the model

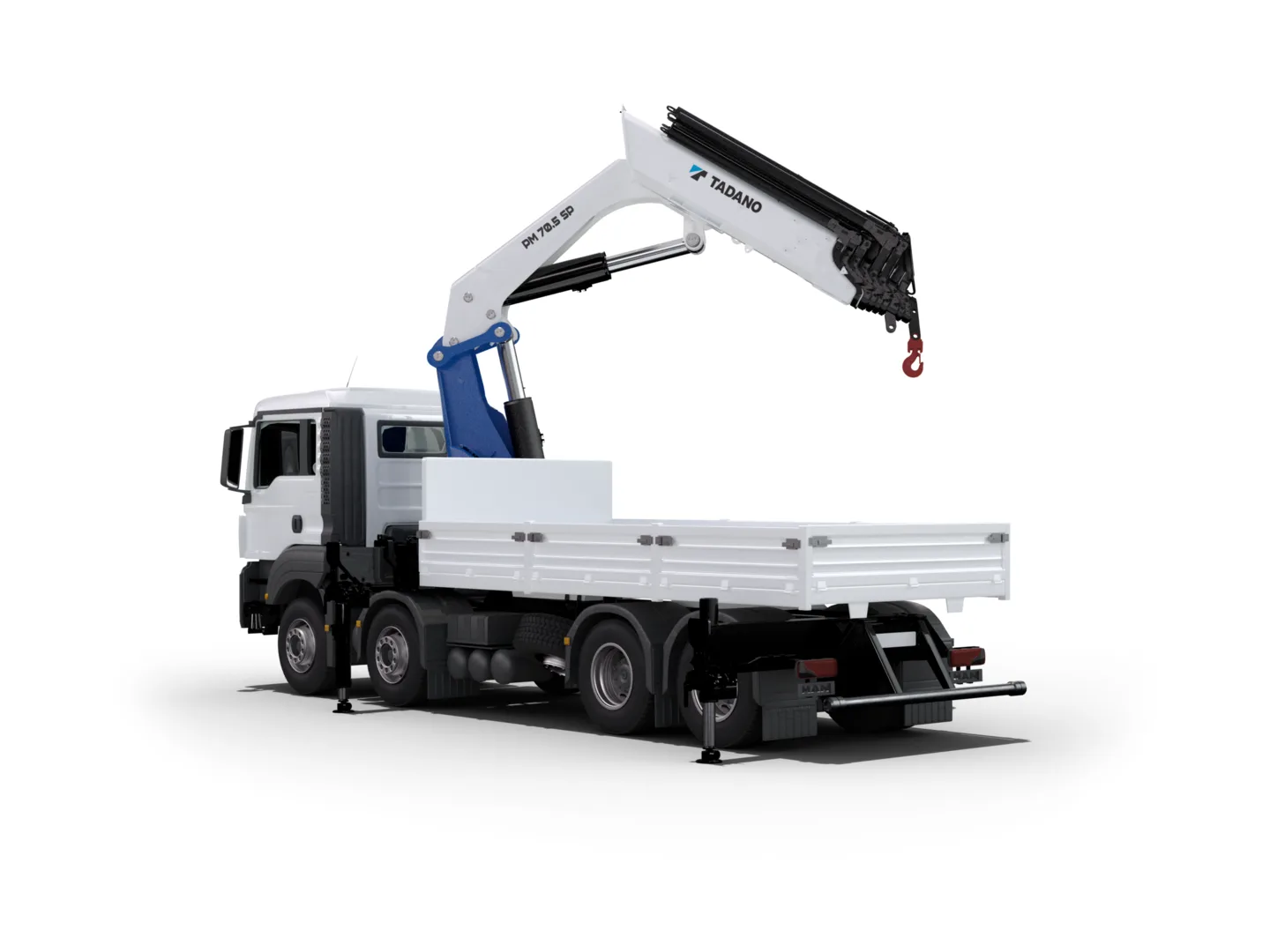

The Tadano PM 70.5 SP is a loader crane by Tadano.
Hook height 36.88 m, maximum radius 33.8 m.
