XCMGAll-terrain cranes

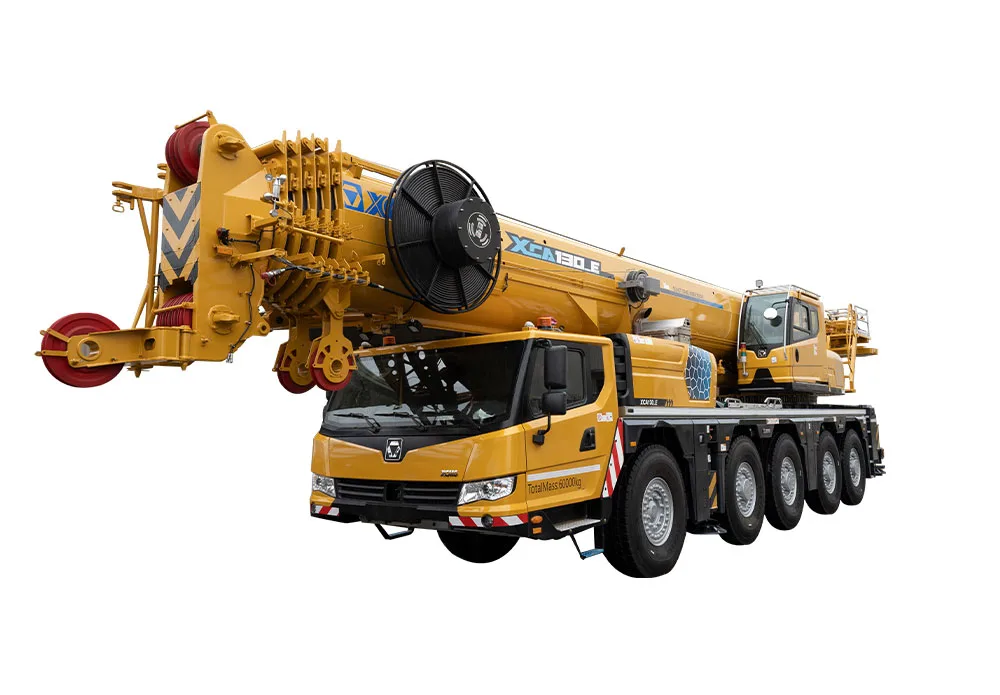

XCMG XCA130_E
Max. lifting capacity130 t
Max. hook height92.5 m
Main boom length62 m
Specifications
| Specification | Value |
|---|---|
| Lifting | |
| Max. lifting capacity | 130 t |
| Load moment | 455.6 t·m |
| Max. hook height | 92.5 m |
| Boom | |
| Main boom length | 62 m |
| Carrier and engine | |
| Power | 360 kW |
| Engine | OM471LA |
| Axle configuration | 10×8×10 |
| Speeds | |
| Travel speed | 80 km/h |
| Dimensions and weight | |
| Total crane weight | 60 t |
| Length | 11,960 mm |
| Width | 2,550 mm |
| Height | 3,790 mm |
About the model
The XCMG XCA130_E is an all-terrain crane by XCMG with a maximum lifting capacity of 130 t.
Main boom length 62 m, hook height 92.5 m.
10×8×10 drive, engine output 360 kW.
